Emtac/Transplant iGPSJ Sleeve

01st May 2003

 Review by Dave Burrows



Introduction

When the Emtac Sleeve came out back in 2002, we reviewed this as part of the TravRoute CoPilot review.  What we didn't do is create a separate review, and we've been receiving quite a lot of response lately asking for a separate review for the Emtac Sleeve, so for all you who asked for it, here it is.



The New Sleeve

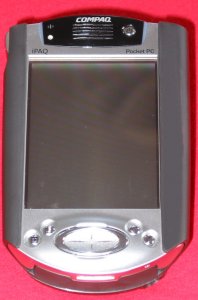

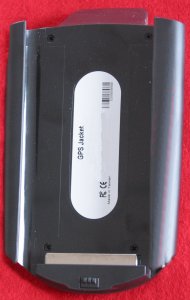

The new Emtac sleeve shows it to be very robust and well finished.  No sharp or pointy edges and is a lot slimmer than the Navman sleeve.  The antenna is angled at approx 45 degrees, when the sleeve is held upright hanging from a vent mount, you'll find the antenna has a perfect view of the sky.  For those who want to use an external antenna, or if you have a UV coated windscreen, you'll also notice a little metal socket top left on the rear of the sleeve, this is for the external antenna.  Oh yes!  You can plug an external antenna into this baby!



At the bottom right of the sleeve is a DC socket to enable you to plug your charger cable directly into the sleeve, no need to mess around with that horrible 3800 iPAQ connector cable anymore!   The sleeve also comes with an internal battery.  Thought has really been put into this sleeve.



Several Pocket GPS readers have commented that the sleeve looks ugly, and there have also been concern in the GPS user community that having an antenna stick out at this angle could be a problem if it were to fall and catch on something in-car.



We can tell you that this antenna is rock solid, made of very tough plastic, and even if this were to drop, we would hedge our bets that the iPAQ would receive more damage than the sleeve antenna!  The antenna may look obtrusive, but when you're walking with it, or have it in a case on your belt, it really doesn't feel obtrusive.  The antenna also doubles up as a good stand when you put the iPAQ onto your desk ;-).


Seriously though, the sleeve design makes it as slim as a CF card sleeve, and doesn't skimp on any features!





Performance

The Emtac Sleeve pits itself directly against the Navman sleeve, and surprisingly is only the second GPS sleeve available for the Compaq iPAQ.  The sleeve itself performs very well and does beat the Navman 3000 sleeve hands down in TTFF's and re-acquisition times.



Mounting

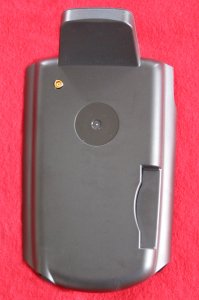

On the rear of the sleeve you'll see a circle, this is designed to be a clean smooth piece of plastic to stick a round button mount.  A perfect addition to this sleeve is TheClip.com Vent Mount.  You can see some photos from our review below.





Inside Emtac Sleeve

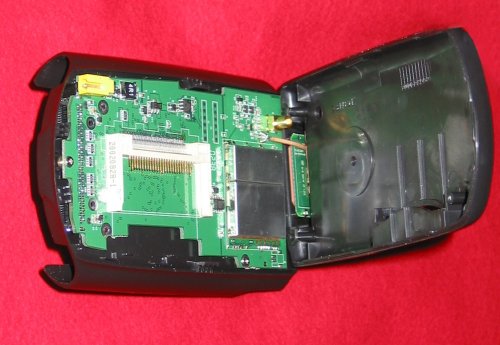

Here's an opened up photo that shows the circuitry within the sleeve and how the antenna is attached.







Specification
Model Number D15A8
Chipset SiRF StarIIe / LP
Frequency L1, 1575.42 MHz
C/A 1.023 MHz chip rate
Channels 12 Channel all-in-view tracking
DGPS Source Default:None
Programmable WAAS/EGNOS
System Backup Built-in Lithium-ion rechargeable battery
Antenna Type One Built-in Active Antenna / Optional external active antenna(MCX connector)
Accuracy (DGPS:None)
  Position 10 meters RMS, 25 meter CEP, without SA
  Velocity 0.1 meters/second, without SA
  Time 1 microsecond synchronized to GPS time
Datum WGS-84 (or by demanded)
Acquisition Rate (Open Sky)
  Reacquisition 0.1 sec., average
  Cold Start < 80 sec., average
  Warm Start < 45 sec., average
  Hot Start < 10 sec., average
Dynamic Conditions
  Altitude <18,000 meters
  Velocity < 515 meter/second
  Acceleration < 4g

Interface
  GPS Connection

Physical: Connect to iPAQ Pocket PC(PPC) via 100 pin Expansion Connector.

Logical: COM4 (iPAQ36xx), COM5 (iPAQ38xx), COM6 (iPAQ39xx).

NO extra driver needed to be installed to iPAQ PPC.

Serial Format: 4800,N,8,1

  GPS Protocol

Default: NMEA-0183 (V2.20) - GGA(1), GSA(1), GSV(5), RMC(1)

(n): n is the update interval in seconds

Programmable: additional NMEA - VTG, GLL / SiRF Binary

  CF Slot Supports Type I/II CF Memory/IO cards and IBM Microdriver.
Power Circuit is powered by and from iPAQ 3.3V DC via Expansion Connector One embedded 5V DC-Jack input for charging iPAQ.


Consumption:

(W/o Ext Ant. And

CF Memory card inserted.)

Default: 90mA @3.3V in Continuous mode,

Programmable: <90mA@3.3V in trickle power mode, depend on duty-cycle

setting

Device Size 90(W) x 1400(L) x 30(H) mm
Weight 113 grams
Environmental
  Operating Temperature 0C to +70C
  Relative Humidity 5% to 95%, non-condensing
Certification FCC / CE



GPS Hardware TTFF (Time To First Fix)



Cold

Test 1

Cold

Test 2

Cold

Test 3

Cold

Test 4

Cold

Test 5

Cold

Test

Average

Warm

Test

Hot

Test

CoPilot CF 1m 22s 1m 8s 56s 1m 17s 54s 1m 07s 52s 16s
Emtac Sleeve/CoPilot 40s 37s 42s 37s 46s 40.4s 10s 9s
Emtac/Socket BT GPS 47s 53s 42s 36s 38s 43.2s 10s 17s
Garmin eTrex 39s 44s 40s 41s 43s 41.4s 8s N/A
Garmin eTrex Summit 38s 41s 45s 39s 42s 41.0s 8s N/A
Garmin eTrex Vista 37s 57s 32s 35s 38s 39.8s 17s N/A
Garmin GPSMap76 42s 34s 23s 56s 32s 37.4s 12s N/A
Garmin GPSMap76S 32s 53s 32s 39s 36s 38.4s 11s N/A
Garmin Geko 101 1m 37s 45s 38s 44s 41s 53s 15s 13
Garmin Geko 201 34s 45s 38s 43s 40s 40s 19s 10
HaiCom 302 CF 50s 33s 1m 25s 36s 1m 25s 57.8s 23s 10s
HaiCom 303 MMF 42s 1m 05 s 41s 1m 02 s 1m 18s 57.6s 36s 3s
Holux GM-210 42s 38s 35s 37s 42s 38.8s 30s 4s
Holux GM-270 54s 1m 07 s 1m 03s 50s 1m 12s 61.2s 39s 4s
Holux GM-270U 46s 49s 42s 1m 01 s 49s 49.4s 35s 3s
Holux GR-230 1m 02s 55s 50s 49s 52s 53.6s 39s 5s
LeadTek 9531 / 9532 29s 37s 39s 41s 43s 37.8s 9s 5s
Magellan Meridian Range of GPS 38s 53s 43s 33s 35s 40.4s 18s 15s
Magellan SporTrak Range of GPS 37s 47s 46s 41s 41s 42.4s 19s 16s
Navman 3000 (ROM 2.0.0) 49s 52s 1m 33s 3m 23s 8m 5s 2m 56s 20s 11s
Navman 3400/3420 (ROM 2.1.2) 1m 33s 2m 30s 1m 32s 52s 1m 17s 1m 32.8s 20s 12s
Navman 3450 (ROM 2.1.2) 57s 50s 1m 09s 48s 1m 0s 56.8s 20s 11s
Navman 4400 53s 1m 03s 1m 19s 54s 53s 1m 00.4s 0s 0s
Pretec Compact CF 1m 28s 2m 47s 57s 45s 1m 2s 1m 23s 1m 16s 12s
Pretec Compact LP CF 3m 48s 5m 32s 4m 59s 1m 53s 4m 02s 4m 04s 52s 33s
Rikaline X5 41s 41s 34s 41s 42s 39.5s 39s 0s
Rikaline X6 34s 60s 44s 48s 57s 48.6s 38s 0s
RoyalTek Onyx 1m 28s 1m 39s 2m 23s 1m 38s 1m 35s 1m 46s 1m 24s 17s
RoyalTek Sapphire RGM 1m 02s 1m 0s 56s 41s 55s 54.8s 37s 10s
RoyalTek RBT-3000 57s 46s 43s 41s 55s 48.4s 30s 9s
RoyalTek RGM-2000 48s 52s 40s 45s 39s 44.8s 33s 7s
SysOnChip BT GPS 48s 77s 66s 67s 51s 61.8s 37s 4s
SysOnChip CF Plus (SIRFXTrac) 40s 30s 33s 38s 39s 36s 30s 0s
TFAC MG30 Mouse 1m17s 1m 26s 1m 38s 1m 36s 2m 11s 1m 37s 34s 4s
TomTom Bluetooth GPS 48s 52s 46s 59s 51s 51.2s 37s 3s



Fastest

TTFF

Cold

Tests

Slowest

TTFF

Cold

Tests

Manufacturer

Stated

Times

Warm

TTFF

Tests

Manufacturer

Stated

Times

Hot

TTFF

Tests

Manufacturer

Stated

Times

CoPilot CF 54s 1m 22s Not Stated 52s N/A 16s N/A
Emtac Sleeve/CoPilot 37s 46s Not Stated 10s N/A 9s N/A
Emtac/Socket BlueTooth GPS 36s 53s 1m 20s 10s 45s 6s 10s
Garmin eTrex 39s 44s 45s 8s 15s N/A N/A
Garmin eTrex Summit 38s 45s 45s 8s 15s N/A N/A
Garmin eTrex Vista 32s 57s 45s 12s 15s N/A N/A
Garmin GPSMap76 32s 56s 45s 12s 15s N/A N/A
Garmin GPSMap76S 32s 53s 45s 12s 15s N/A N/A
Garmin Geko 101 38s 1m 37s 45s 15s 15s 13s N/A
Garmin Geko 201 34s 45s 45s 19s 15s 10s N/A
HaiCom 302 CF 33s 1m 25s 48s 23s 38s 10s 8s
HaiCom 303 MMF 41s 1m 18s 48s 36s 38s 3s 8s
Holux GM-210 35s 42s 45s 30s 38s 4s 8s
Holux GM-270 50\s 1m 12s 45s 39s 38s 4s 8s
Holux GM-270U 42s 1m 01s 45s 35s 38s 3s 8s
Holux GR-230 39s 1m 02s 45s 39s 38s 5s 8s
LeadTek 9531 / 9532 29s 43s 48s 9s 38s 5s 8s
Magellan Meridian Range of GPS 33s 53s <2m 18s <1m 15s <15s
Magellan SporTrak Range of GPS 37s 47s <5m 19s <1m 16s <15s
Navman 3000 49s 8m 05s 2m 0s 20s 48s 11s 18s
Navman 3400/3420 (ROM 2.1.2) 52s 2m 30s 2m 0s 20s 48s 12s 18s
Navman 3450 (ROM 2.1.2) 48s 1m 09s 2m 0s 20s 48s 11s 18s
Navman 4400 53s 1m 19s n/a 0s n/a 0s n/a
Pretec Compact CF 45s 2m 47s 1m 0s 1m 16s 45s 12s 8s
Pretec Compact LP CF 1m 53s 5m 32s 2m 10s 52s 45s 33s 20s
Rikaline X5 34s 42s 45s 39s 38s 0s 8s
Rikaline X6 34s 1m 00 s 45s 38s 38s 0s 8s
RoyalTek Onyx 1m 28s 2m 23s 45s 3m 0s 45s 17s 20s
RoyalTek Sapphire 41s 1m 02s 45s 37s 38s 10s 45s
RoyalTek RBT-3000 41s 57s 45s 30s 38s 9s 8
RoyalTek RGM-2000 39s 52s 45s 33s 38s 17s 45s
SysOnChip BT GPS 37s 77s 45s 37s  38s 4s 8s
SysOnChip CF Plus (SIRFXTrac) 30s 40s 45s 30s  38s 0s 8s
TFAC MG30 1m 17s 2m 11s 45s 34s  8s 4s 0.1s
TomTom Bluetooth GPS 48s 59s 45s 37s 38s 3s 8s



Summary

The new Emtac sleeve is a great design, and easily out performs other GPS Receivers.  If you really do need a sleeve with CF slot integrated and GPS Receiver then the Emtac Sleeve is probably for you.  If you're going to be using GPS mainly in-car, then you'll probably find a GPS Mouse system better.  The sleeve is available as the Emtac Sleeve in Europe and also as the Transplant Computing Sleeve in the US.



References

Manufacturers Website

http://www.emtac.com.tw

http://www.transplantcomputing.com

Pocket GPS Reviewer

Dave Burrows

Pocket GPS Reviewer Website

Dave Burrows.com

Rating



Durability

Windscreen Suction Mount Strength

not supplied

Air Vent Mount Strength

Car Power Cable Quality

Overall Rating 93%
